Mercedes-AMG PETRONAS F1 Team × Dual-Canopy Compact Performance Umbrella
This is a case study from HFUMBRELLA-custom dual canopy umbrella manufacturer developed for the Mercedes-AMG PETRONAS Formula One Team.
The project focused on building a compact windproof umbrella designed for extreme outdoor and racing environments, where performance and consistency are critical.
When we first received this brief, it looked simple on paper — but the requirement was clear:
“This is not a promotional product. It must behave like engineered field equipment.”
Project Context: Real F1 Operating Conditions
This umbrella was designed for real operational environments within Formula 1:
paddock zones, open track areas, and high wind race weekends.
The product had to balance three conflicting requirements:
- High wind resistance
- Compact 2-fold portability
- Lightweight structural design
In engineering terms, this is a constraint conflict — not a design choice.
Design Direction: Structure Before Aesthetics
We started from mechanical structure, not visual design.
- Dual-layer canopy reduces internal wind pressure buildup

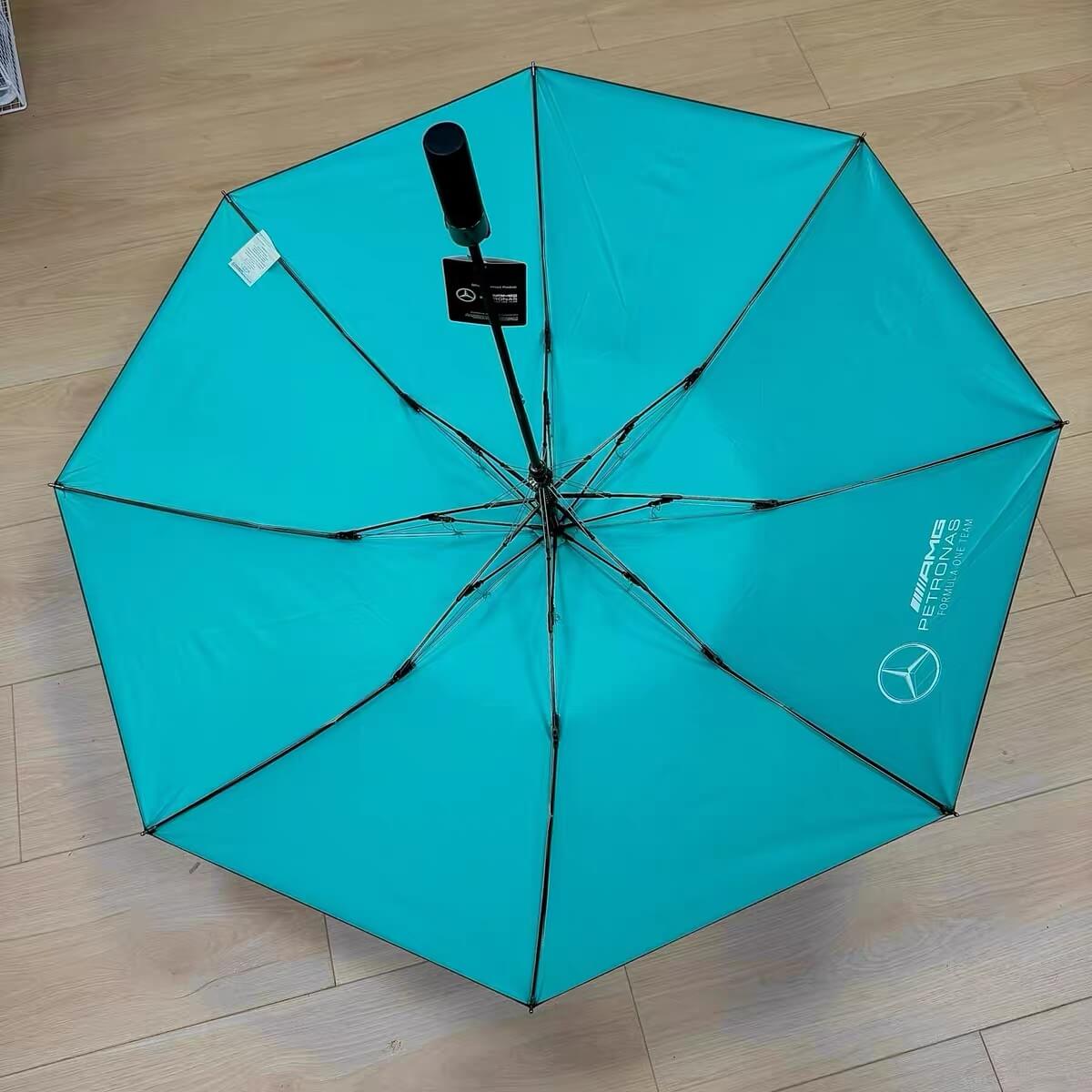

- Fiberglass rib system optimized for controlled flex
- Compact folding geometry for field portability

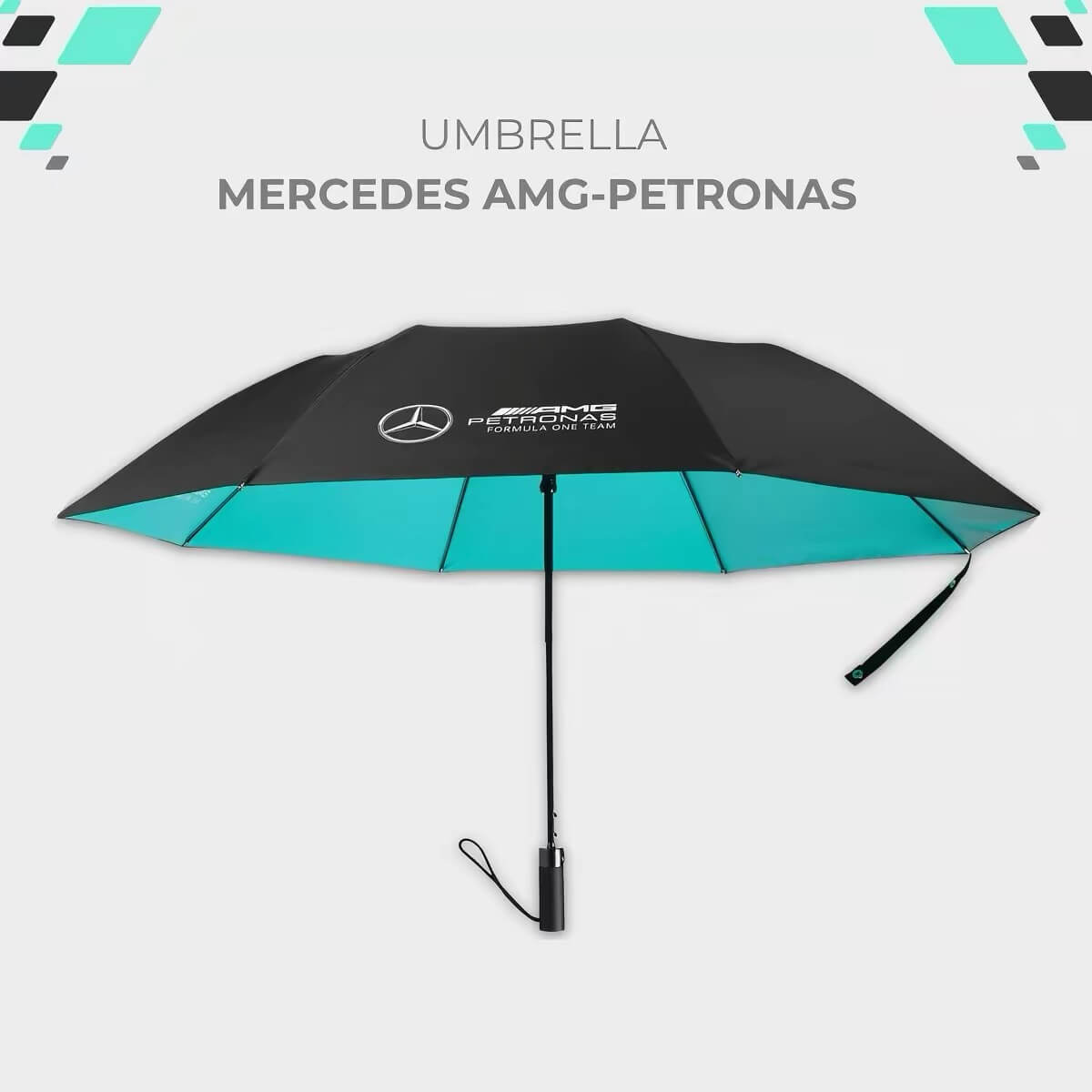

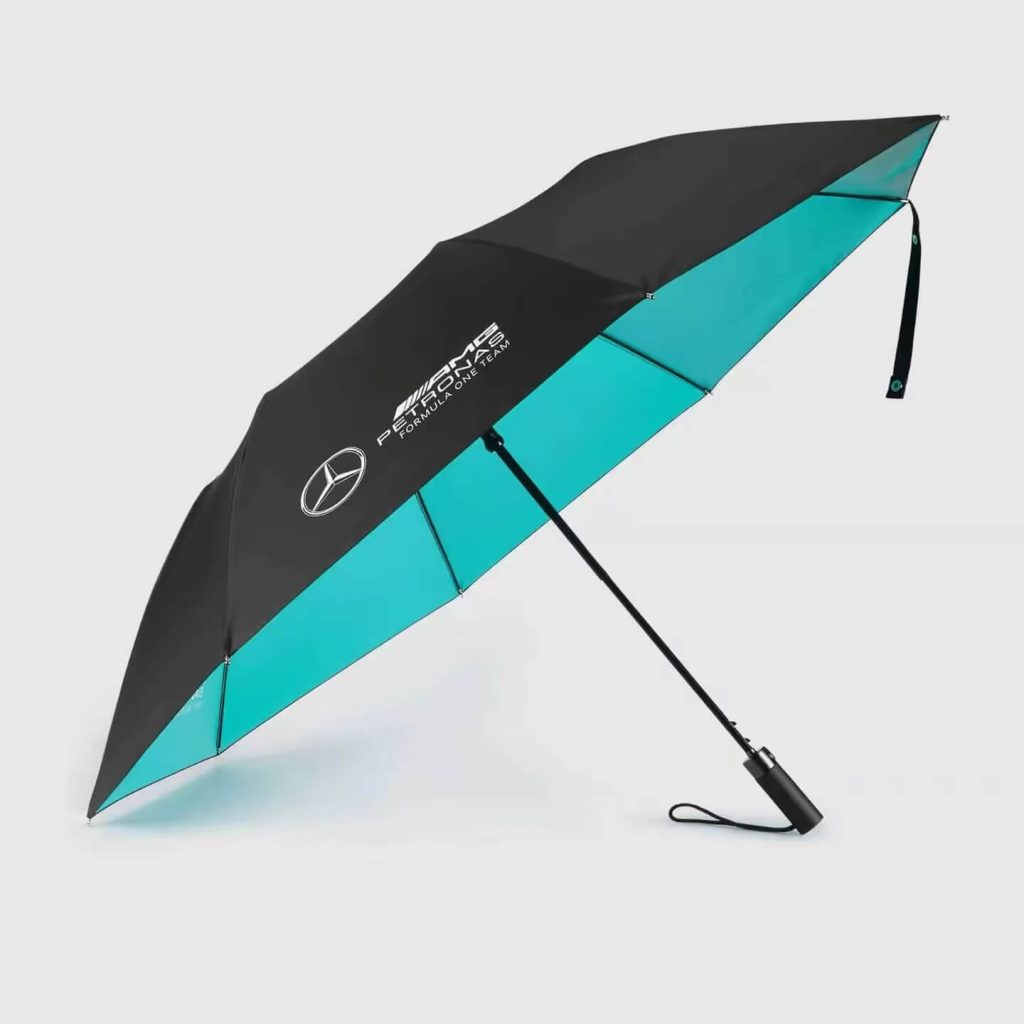

- Black exterior + PETRONAS turquoise interior visual system
Even without branding, the product must still look like a performance device.
Engineering Validation by Custom Dual Canopy Umbrella Manufacturer
Durability: 3,000+ open/close cycles tested
Structural deviation reduced from ~1° → < 0.3°
Prototype Issue Identified
Early testing revealed torsional movement at rib joint under lateral wind load.
At the same time, canopy tension was too high, reducing deployment speed.
This created a key trade-off:
Higher tension improved wind resistance, but reduced mechanical efficiency.
We adjusted:
– Canopy pre-tension reduced (~10–12%)
– Rib joint structure reinforced for load redistribution
Material & Manufacturing Control
- Black matte coating variation controlled within ~5%
- Color batch consistency stabilized for PETRONAS turquoise fabric
- Panel alignment tolerance controlled within ±1.5 mm
In mass production, consistency is not a feature — it is the product itself.
Quality Assurance Protocol
Wind simulation batch testing
Multi-light visual inspection
Structural deformation verification under load
Production was only approved after repeatability across batches was confirmed.
Final Product Outcome
- Stable wind resistance up to ~50 km/h simulated gusts
- 3,000+ cycle durability without structural failure

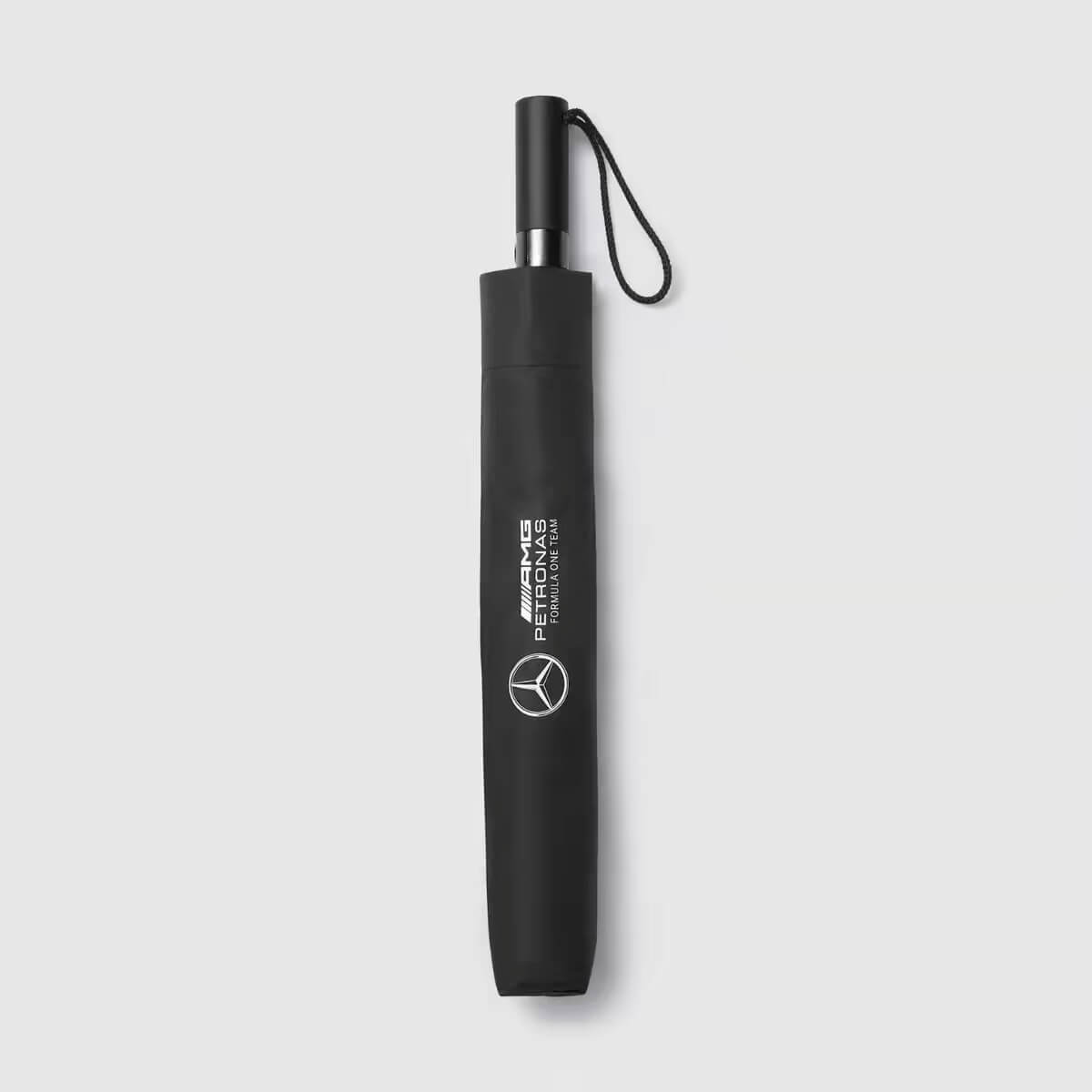

- Compact 2-fold field-ready design
- Mercedes-AMG PETRONAS aligned visual identity
This is not a promotional umbrella — it is field equipment designed for operational use.
Project Insight
Design defines intention. Engineering defines survival.
In real manufacturing, performance is not achieved once — it is achieved through iteration.
And consistency is what makes it scalable.
